DAO 대신 MyBatis 사용하기 (DB연결, sql문 처리)
-
New Dynamic Web Project로 0_AddressMybatis 생성
-

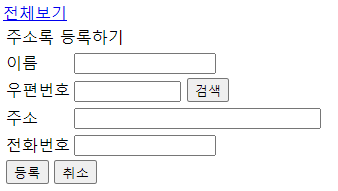

WebContent에 address_my 폴더 생성후 addressInsert.jsp 만들기
addressInsert.jsp
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
<script src="../js/jquery-3.5.1.min.js"></script>
<script>
$(function(){
$("#btn").on("click",function(){
if($("#name").val()==""){
alert("이름을 입력하세요");
return false;
}
if($("#zipcode").val()==""){
alert("우편번호을 입력하세요");
return false;
}
if($("#addr").val()==""){
alert("주소를 입력하세요");
return false;
}
if($("#tel").val()==""){
alert("전화번호를 입력하세요");
return false;
}
frm.submit();
});
})
function zipfinder(){
window.open("zipAction.amy","","width=700 height=400");
}
</script>
</head>
<body>
<a href="list.jsp">전체보기</a> <br>
<form action="insertAction.amy" method="post" name="frm" id="frm">
<table>
<tr>
<td colspan="2">주소록 등록하기</td>
</tr>
<tr>
<td>이름</td>
<td><input type="text" name="name" id="name" size=15></td>
</tr>
<tr>
<td>우편번호 </td>
<td><input type="text" name="zipcode" id="zipcode" size=10>
<input type="button" name="search" value="검색" onclick="zipfinder()"></td>
<tr>
<td>주소
<td colspan="2"><input type="text" name="addr" id="addr" size=30>
</td>
</tr>
</tr>
<td>전화번호</td>
<td colspan="2"><input type="text" name="tel" id="tel" size=15></td>
<tr>
<td colspan="2">
<input type="submit" value="등록">
<input type="reset" value="취소"></td>
</tr>
</table>
</form>
</body>
</html>
-
src에 org.addrMy.action 패키지 생성 후 InsertAction.java 서블릿 만들기.
-
이 서블릿에 Mybatis를 연결할 것이다.
-
AddressVO 클래스의 vo객체를 생성하고 파라미터로 넘어온 값들을 저장할 것이다.
-
org.addrMy.model 패키지. AddressVO.java 생성
AddressVO.java
package org.addrMy.model;
public class AddressVO {
private int num;
private String name;
private String addr;
private String tel;
private String zipcode;
public int getNum() {
return num;
}
public void setNum(int num) {
this.num = num;
}
public String getName() {
return name == null ? "" : name.trim();
}
public void setName(String name) {
this.name = name;
}
public String getAddr() {
return addr == null ? "" : addr.trim();
}
public void setAddr(String addr) {
this.addr = addr;
}
public String getTel() {
return tel == null ? "" : tel.trim();
}
public void setTel(String tel) {
this.tel = tel;
}
public String getZipcode() {
return zipcode == null ? "" : zipcode.trim();
}
public void setZipcode(String zipcode) {
this.zipcode = zipcode;
}
}
-
이번에는 DAO를 만들지 않고 Mybatis를 이용하여 sql문을 처리한다.
-

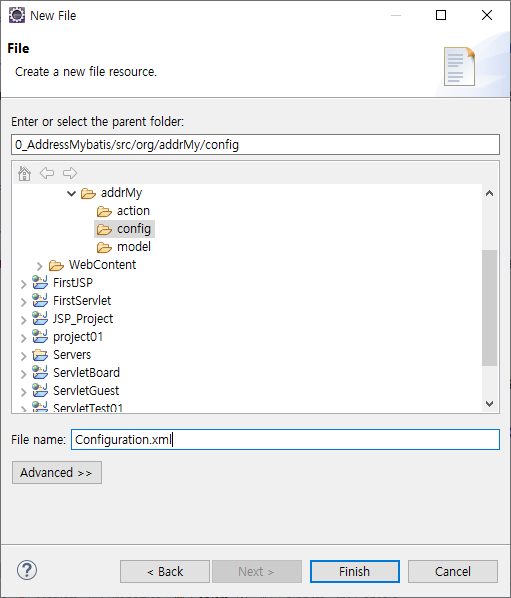

org.addrMy.config 패키지를 생성하고 Configuration.xml 만들기 (New File)
Configuration.xml
(MyBatis-3-User-Guide_ko.pdf 에서 복사 붙여넣기)
https://kldp.net/fwko/release/3410-MyBatis-3-User-Guide_ko.pdf
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
<properties resource="org/addrMy/config/jdbc.properties"/>
<environments default="development">
<environment id="development">
<transactionManager type="JDBC"/>
<dataSource type="POOLED">
<property name="driver" value="${driver}"/>
<property name="url" value="${url}"/>
<property name="username" value="${username}"/>
<property name="password" value="${password}"/>
</dataSource>
</environment>
</environments>
<mappers>
<mapper resource="org/addrMy/config/ObjectMapper.xml"/>
</mappers>
</configuration>
${변수} 는 어딘가에서 내보낸 값들이 저장된다. 어디서 내보낸 걸까?
같은 패키지 경로에 jdbc.properties를 New File로 생성한다.
jdbc.properties
driver = oracle.jdbc.driver.OracleDriver
url = jdbc:oracle:thin:@localhost:1521:xe
username = scott
password = 1234

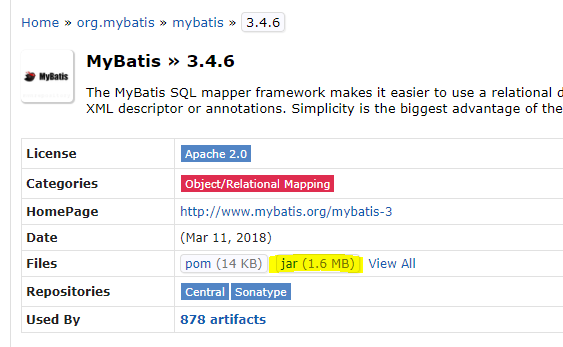

https://mvnrepository.com/artifact/org.mybatis/mybatis/3.4.6
Maven Repository: org.mybatis » mybatis » 3.4.6
mvnrepository.com
에서 MyBatis.jar 파일을 다운받는다. 3.4.6버전이다. WEB-INF의 lib 폴더에 붙여넣는다.
org.addrMy.config 안에 MybatisManager.java 클래스를 생성한다.
MybatisManager.java
package org.addrMy.config;
import java.io.IOException;
import java.io.Reader;
import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;
public class MybatisManager {
public static SqlSessionFactory sqlMapper;
static {
String resource="org/addrMy/config/Configuration.xml";
Reader reader;
try {
reader=Resources.getResourceAsReader(resource);
sqlMapper=new SqlSessionFactoryBuilder().build(reader);
} catch (IOException e) {
e.printStackTrace();
}
}
public static SqlSessionFactory getSqlMapper() {
return sqlMapper;
}

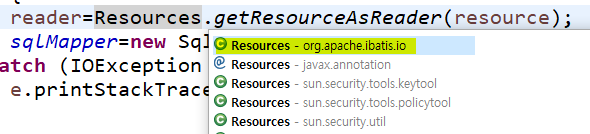

}여기서 Resources는 ibatis라 적힌것을 임포트 해야한다.
InsertAction.java
package org.addrMy.action;
import java.io.IOException;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import org.addrMy.config.MybatisManager;
import org.addrMy.model.AddressVO;
import org.apache.ibatis.session.ExecutorType;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
/**
* Servlet implementation class InsertAction
*/
@WebServlet("/address_my/insertAction.amy")
public class InsertAction extends HttpServlet {
private static final long serialVersionUID = 1L;
/**
* @see HttpServlet#HttpServlet()
*/
public InsertAction() {
super();
// TODO Auto-generated constructor stub
}
/**
* @see HttpServlet#doGet(HttpServletRequest request, HttpServletResponse response)
*/
protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
RequestDispatcher rd=request.getRequestDispatcher("addressInsert.jsp");
rd.forward(request, response);
}
/**
* @see HttpServlet#doPost(HttpServletRequest request, HttpServletResponse response)
*/
protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
request.setCharacterEncoding("utf-8");
AddressVO vo=new AddressVO();
vo.setName(request.getParameter("name"));
vo.setAddr(request.getParameter("addr"));
vo.setNum(Integer.parseInt(request.getParameter("num")));
vo.setTel(request.getParameter("tel"));
vo.setZipcode(request.getParameter("zipcode"));
SqlSessionFactory sqlMapper=MybatisManager.getSqlMapper();
SqlSession sqlSession=sqlMapper.openSession(ExecutorType.REUSE);
sqlSession.insert("insertData", vo);
sqlSession.commit();
response.sendRedirect("listAction.amy");
}
}
org.addrMy.config 패키지 내에 ObjectMapper.xml 생성
Mybatis 가이드북에서 mapper.dtd 복사 붙여넣기
ObjectMapper.xml
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="org.addrMy.config.ObjectMapper">
<insert id="insertData" parameterType="org.addrMy.model.AddressVO">
insert into address(num, name, zipcode, addr, tel)
values(address_seq.nextval,#{name},#{zipcode},#{addr},#{tel})
</insert>
<!-- all select -->
<select id="listData" resultType="org.addrMy.model.AddressVO">
select * from address
</select>
<!-- count -->
<select id="countData" resultType="Integer">
select count(*) from address
</select>
</mapper>
ListAction.java
package org.addrMy.action;
import java.io.IOException;
import java.util.List;
import javax.servlet.RequestDispatcher;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import org.addrMy.config.MybatisManager;
import org.addrMy.model.AddressVO;
import org.apache.ibatis.session.ExecutorType;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import sun.rmi.server.Dispatcher;
/**
* Servlet implementation class ListAction
*/
@WebServlet("/address_my/listAction.amy")
public class ListAction extends HttpServlet {
private static final long serialVersionUID = 1L;
/**
* @see HttpServlet#HttpServlet()
*/
public ListAction() {
super();
// TODO Auto-generated constructor stub
}
/**
* @see HttpServlet#doGet(HttpServletRequest request, HttpServletResponse response)
*/
protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
request.setCharacterEncoding("utf-8");
SqlSessionFactory sqlMapper=MybatisManager.getSqlMapper();
SqlSession sqlSession=sqlMapper.openSession(ExecutorType.REUSE);
List<AddressVO> arr=sqlSession.selectList("listData");
int count=(Integer)sqlSession.selectOne("countData");
request.setAttribute("arr", arr);
request.setAttribute("count", count);
RequestDispatcher rd=request.getRequestDispatcher("addrList.jsp");
rd.forward(request, response);
}
/**
* @see HttpServlet#doPost(HttpServletRequest request, HttpServletResponse response)
*/
protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
// TODO Auto-generated method stub
doGet(request, response);
}
}
addrList.jsp
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
<table>
<div align="left">
<a href="insertAction.amy">글쓰기 <a/>/ 개수 (${count}) </span>
</div>
<thead>
<tr>
<td>번호</td>
<td>이름</td>
<td>주소</td>
<td>전화번호</td>
</tr>
</thead>
<tbody>
<c:forEach items="${arr}" var="arr">
<tr>
<td>${arr.num}</td>
<td><a href="detail.do?num=${arr.num}">${arr.name}</a></td>
<td>${arr.addr}</td>
<td>${arr.tel}</td>
</tr>
</c:forEach>
</tbody>
</table>
<select name="field" id="field">
<option value="name">이름</option>
<option value="tel">전화</option>
</select>
<input type="text" name="word" id="word">
<input type="button" value="검색" id="searchBtn">
</body>
</html>

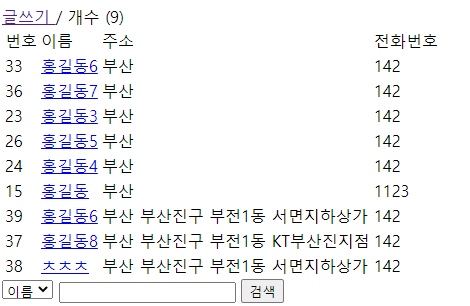

ListAction.java를 실행하면 목록이 보인다.
